Type F 620 S Stainless steel
Features and benefits:
- for transferring low flammabiltiy liquids from containers, either open topped or closed
- consisting of an inner tube and outer tube; the drive shaft is supported within the inner tube
- a mechanical seal in ceramic oxide, o-rings in FKM, separates the liquid from bearings and upper shaft
- with an open conical impeller
- 2 sizes: 15 and 30 to meet varying capacity requirements
Construction features in detail:
Construction features Type F 620 S
The pump is available in:
- stainless steel 316 Ti (S)
- conical impeller in Polypropylene
Nominal lengths:
- 300 - 3000 mm in steps of 100 mm
Available drive motors:
- Three-phase motors 0,75 - 4,0kW, 2850 rpm, jet-proof to IP 55 or explosion-proof to ATEX

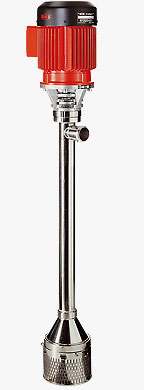

The pictures shows:
- Type F 620 S-30 with suction strainer and three-phase motor
Performance data
- obtained with water at 20 °C at the pump outlet
- Delivery rate: max. 23 m3/h
- Delivery head: max. 12 m liquid column
- Temperature: max. 100 °C
- Viscosity: max. 2500 mPas (cP)
